2-Metre ScopeDome Observatory Dome

  1. Home
  2. Observatories
  3. 2-Metre ScopeDome Observatory Dome

The main advantages of 2M dome:

  • Simple and fast installation of the dome
  • Dome will be delivered to you assembled and tested, its installation does not require more work than a typical installation of the telescope,
  • The dome is ready for operation immediately after unpacking,

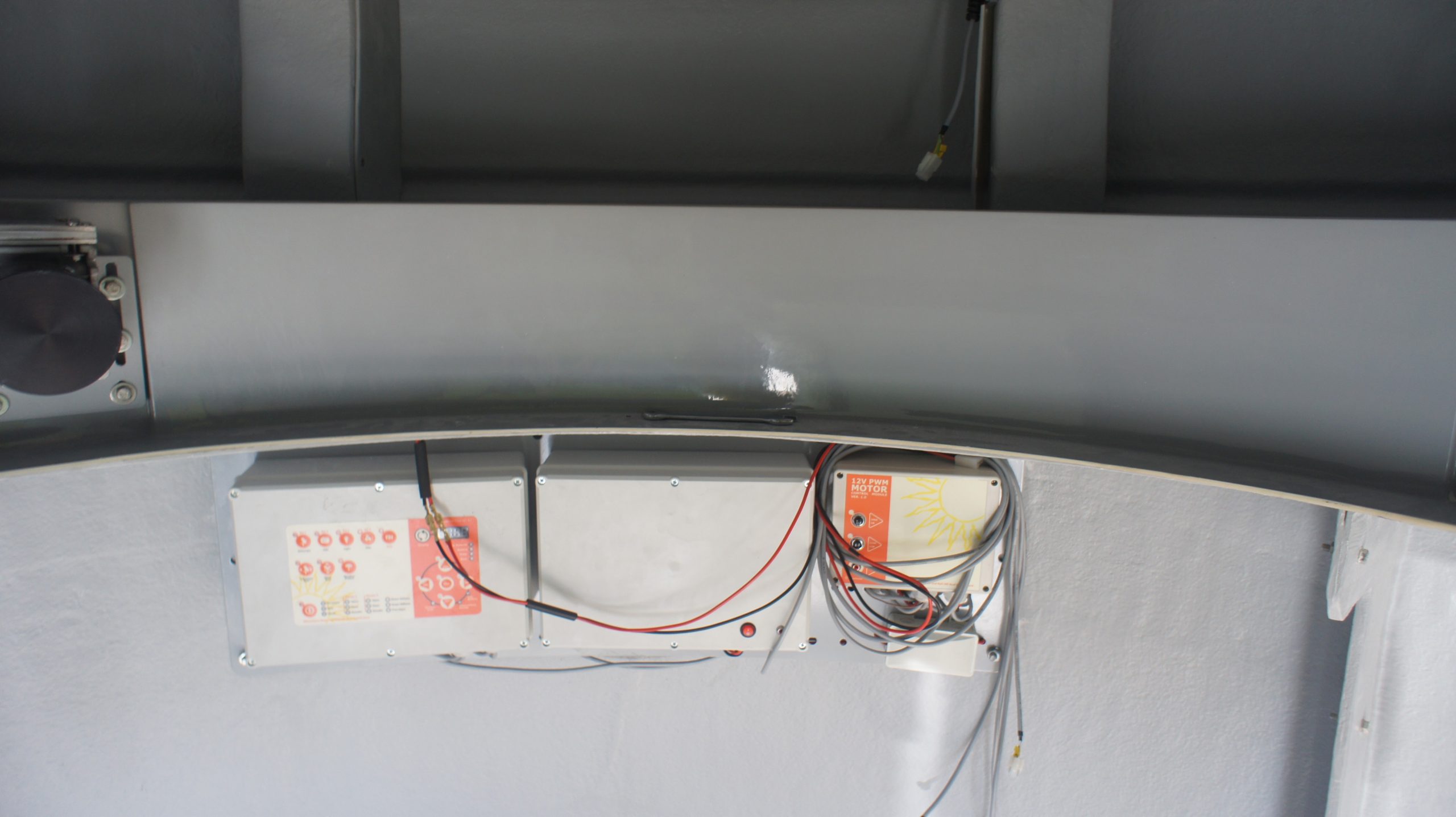

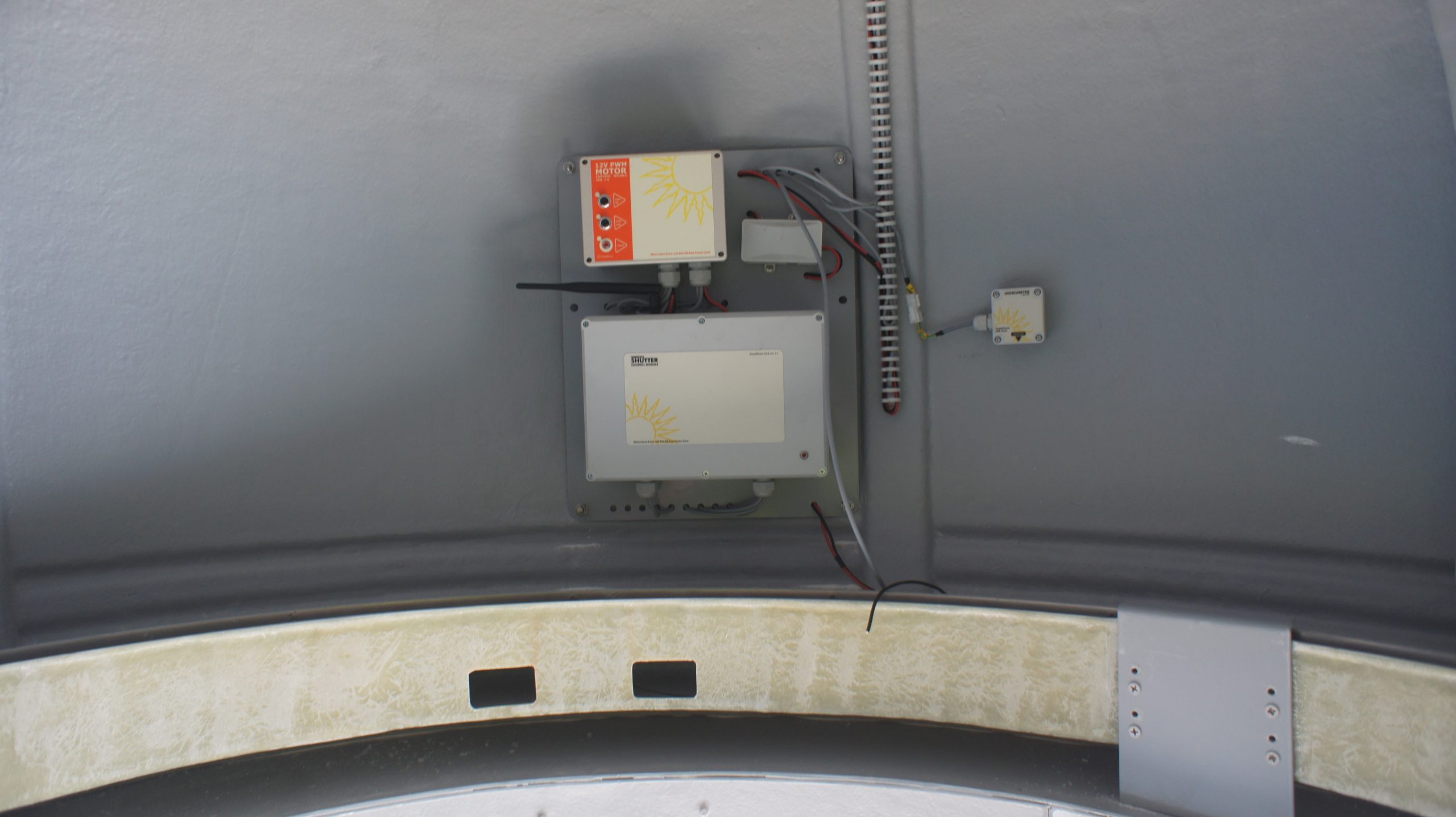

  • Safe (12V DC) power supply for motors, control card
    and heating system,
  • Dome motors and control card can be powered directly from a 12V DC car battery,
  • The ability to automatically open the shutter on any azimuth using the built-in power ring rotating mechanism (slip ring),

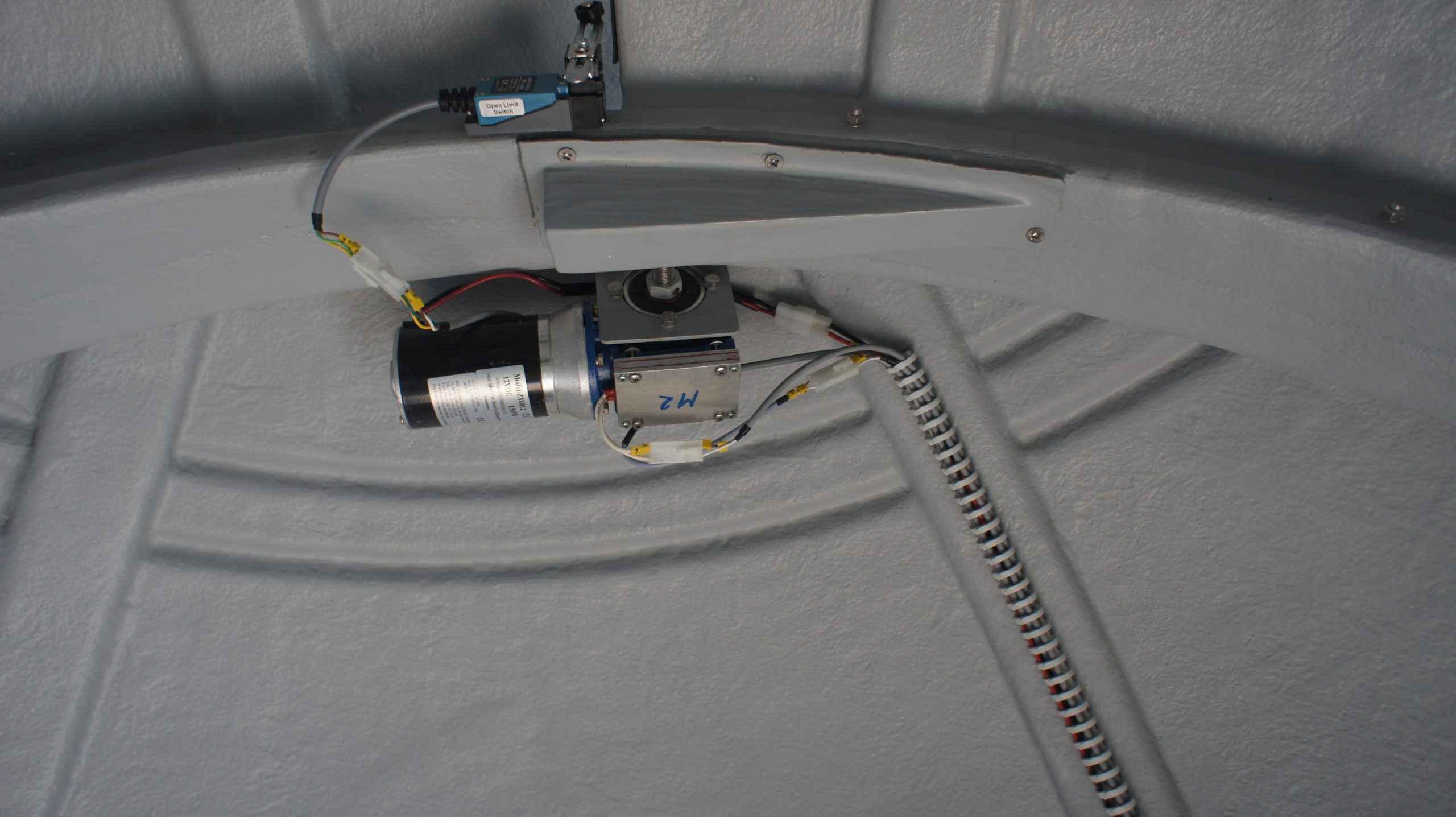

  • All the shutter rolls and rotating mechanism are hidden inside the dome to protect it from weather,
  • Tightness better then in larger domes, design and production in 3D and CNC technology allowed us to minimize the space between the rotating parts of the dome.

2-Metre ScopeDome Observatory Dome

2-Metre ScopeDomes will not be available in Australia until the second half of 2022

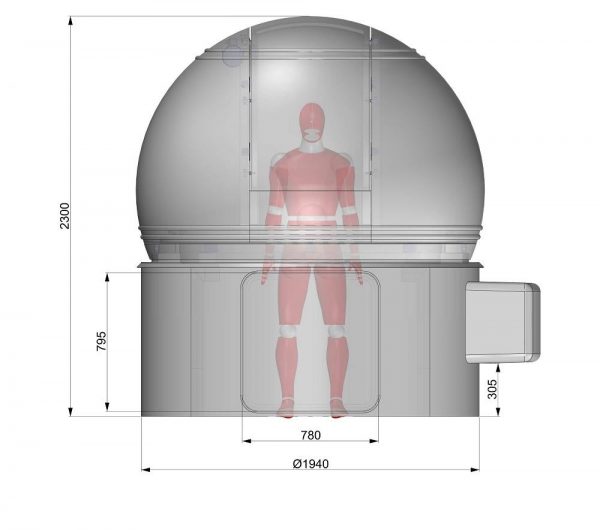

Dome dimensions:
  • Diameter of the dome: 2000 mm
  • Shutter width: 590 mm
  • Dome height: 1400 mm
  • Diameter of the base: 1940 mm
  • Diameter of the outer base ring: 1940 mm
  • Diameter of the inner base ring: 1820 mm
  • Weight (with pallet): ~ 250 kg
   Height with dedicated tower:
  • Tower H80 : 2340 mm
  • Tower H120 : 2615 mm

  Authorized Aus Reseller for ScopeDome
  Free Lifetime Tech Support by Phone
  Optional Onsite Professional Services
  Optional Onsite and Remote Training
  Optional Onsite Contracts Available
